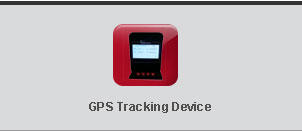

GPS Tracking Device


QA22G Tracking Device
  HOST CPU 32BIT CPU
GSM GSM/GPRS DUAL BAND
SIM HOLDER SIM HOLDER
GPS ANTENNEA INTERNAL PREFERED
PROTOCOL STANDARD NMEA 0813
POSITION ACCURACY 10meters or better
VELOCITY 0.5 to 100m/s or more
ALTITUDE OPTIONAL
DYNAMICS OPTIONAL
Time-To-First-Fix TTFF – COLD START (all satellite at -130dBm) 30s to 50s
Time-To-First-Fix  TTFF – WARM START (all satellite at -130dBm) 30s to 50s
Time-To-First-Fix TTFF – HOTSTART (all satellite at -130dBm) 2s
NAVIGATION UPDATE INTERVAL 1sec to 10sec
NO OF CHANNELS 10 to 50
FEATURES BATTERY BACKUP GPS VMU is battery backed with 4200mAH
IMMOBILIZER POWER SUPPLY disconnection alert
COMMUNICATION PORTS RS232/RS485 PORT
Connectivity to Electronic Ticketing Machine (optional) Bluetooth communication port to communicate to transfer geo-coordinates to ETMs and Collect Ticket data
Connectivity to Destination Boards RS485 Port for connection
Connectivity to Welcome Boards inside BUS RS485 Port for connection
Operating Temperature 0 to 50O C
Humidity 95%RH (non-condensing)
